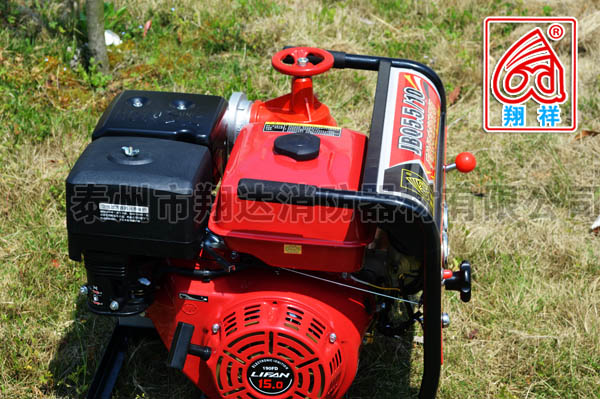

JBQ5.5/10手抬機動消防泵
汽油機形式：
缸徑×行程：
排量：
| 型號名稱Name | JBQ5.5/10手抬式機動消防泵組Portable Fire Pump Set |
| 發動機型式Engine Type | 四沖程單缸風冷4-Stroke Single-Cylinder With Air-cooled |
| 啟動方式Starting Model | 電啟動/自回式手拉繩啟動 Electric/Recoil |
| 大功率Power Output | 10.8KW |
| 引水方式Suction Model | 旋片真空泵Vacuum Pump With Rotaional Piece |
| 吸深Suction Height | ≥7m |
| 大流量Max Flow Rate | 55T/H |
| 額定流量Rated Flow | 36T/H |
| 額定壓力Rated Power | ≥0.55Mpa |
| 揚程Lift | 58m |
| 進水口徑Inlet Diameter | 65mm |
| 出水口徑Outlet Diameter | 65mm |
| 質量N.W | 63kg |
| 體積Volume | 590×520×550mm |
| 發動機型號Engine type | 國產GX420 |
